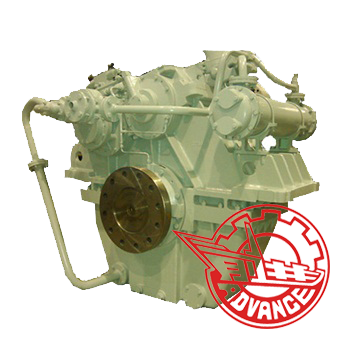

Description: Marine Gearbox 120B possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically
offset and one-stage transmission, featuring in small in volume, light in weight and easy in dismantle & reassemble and maintain.
Main Data:
Input speed | 750-1800r/min | ||
Reduction ratio | 2.03、2.81 | Trans. capacity | 0.088kw/r/min |
3.73 | 0.044kw/r/min | ||
Control way | Push-and-pull flexible shaft, electrically | ||
Rated thrust | 25KN | ||
Center distance | 190mm | ||
L×W×H | 605×744×770mm | ||
Net weight | 400kg | ||
Flywheel | 6135Ca、4120、SAE14 | ||
Bell housing | 6135Ca、4120、SAE1 | ||
Application: Marine Gearbox 120B is suitable for small fishing, transport, tug and passenger boats.
