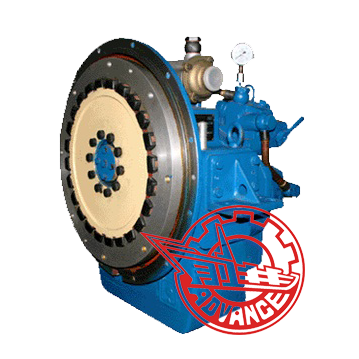

Description: 120C marine gearbox possesses functions of speed reduction, ahead and astern, clutching and de-clutching, and bearing propeller thrust. Featuring in compact in structure, small in volume and light in weight, it can match high-speed engine to form ship power unit.
Main Data:
Input speed | 1000-2500r/min | ||
Reduction ratio | 1.48、1.94、2.45 | Trans. capacity | 0.10kw/r/min |
2.96 | 0.09kw/r/min | ||
3.35 | 0.08kw/r/min | ||
Control way | Push-and-pull flexible shaft, electrically | ||
Rated thrust | 25KN | ||
Center distance | 180mm | ||
L×W×H | 432×440×650mm | ||
Net weight | 225kg | ||
Flywheel | 6135Ca、SAE14、11.5 | ||
Bell housing | 6135Ca、SAE1、2、3 | ||
Application: 120C marine gearbox is suitable for small and medium boats such as yacht, traffic, passenger and cargo boats.
Technical Tel:+86-13816230777
