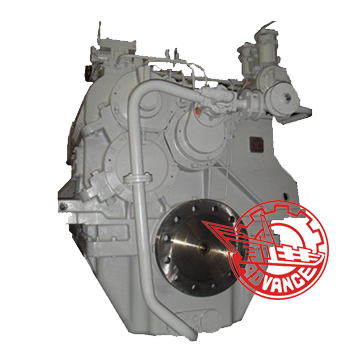

Description: Marine Gearbox HCT2000 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of
vertically offset and two-stage transmission, featuring in compact in structure, large in ratio, and convenient in dis- and reassembly and maintenance.
Main Data:
Input speed | 600-1500r/min | ||
Reduction ratio | 5.185、5.494、5.943、 | Trans. capacity | 1.48kw/r/min |
8.57 | 1.42kw/r/min | ||
8.843 | 1.34kw/r/min | ||
9.428 | 1.23kw/r/min | ||
10.05 | 1.21kw/r/min | ||
Control way | Push-and-pull flexible shaft, electrically, pneumatically | ||
Rated thrust | 280KN | ||
Center distance | 625mm | ||
L×W×H | 1284x1600x1835mm | ||
Net weight | 5600kg | ||
Flywheel | Depend on engine flywheel | ||
Bell housing | NO | ||
Application: Marine Gearbox HCT2000 is suitable for large fishing, tug and various engineering boats.
Technical Tel:+86-13816230777
