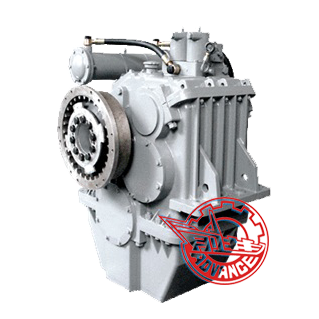

Description: Marine Gearbox HCT800/1 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of
vertically offset and two-stage transmission, featuring in compact structure, larger ratio and convenient in dis- and reassembly and maintenance.
Main Data:
Input speed | 600-1800r/min | ||
Reduction ratio | 6.91、7.28、7.69、8.12、8.60、9.12、9.68 | Trans. capacity | 0.625kw/r/min |
10.30 | 0.609kw/r/min | ||
10.98 | 0.575kw/r/min | ||
11.76 | 0.549kw/r/min | ||
12.43 | 0.520kw/r/min | ||
13.17 | 0.491kw/r/min | ||
13.97 | 0.463kw/r/min | ||
14.85 | 0.435kw/r/min | ||
15.82 | 0.408kw/r/min | ||
16.58 | 0.382kw/r/min | ||
17.91 | 0.378kw/r/min | ||
20.1 | 0.278kw/r/min | ||
Control way | Push-and-pull flexible shaft, electrically, pneumatically | ||
Rated thrust | 220KN | ||
Center distance | 582mm | ||
L×W×H | 1152x1360x1557mm | ||
Net weight | 3200kg | ||
Flywheel | SAE21、18、16 | ||
Bell housing | SAE00、0 | ||
Application: Marine Gearbox MA142 is suitable for small fishing, transport, traffic and passenger boats.
