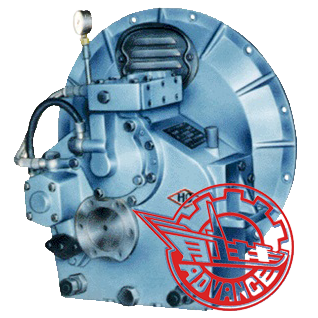

Description: Marine Gearbox MA100 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of
vertically offset and one-stage transmission, featuring in small in volume and light in weight.
Main Data:
Input speed | 1500-3000r/min | ||
Reduction ratio | 1.60、2.00 | Trans. capacity | 0.009kw/r/min |
2.55、3.11 | 0.007kw/r/min | ||
3.59、3.88 | 0.006kw/r/min | ||
Control way | Push-and-pull flexible shaft, electrically, pneumatically | ||
Rated thrust | 3KN | ||
Center distance | 100mm | ||
L×W×H | 236×390×420mm | ||
Net weight | 75kg | ||
Flywheel | SAE11.5、10、7.5 | ||
Bell housing | SAE3、4、5 | ||
Application:Marine Gearbox MA100 is suitable for small fishing, transport, traffic and rescue boats.
