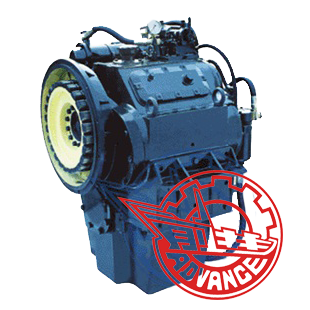

Description: Marine Gearbox T300/1 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of
vertically offset and two-stage transmission, featuring in small in volume, larger in ratio, light in weight and convenient in dis- and reassembly and maintenance.
Main Data:
Input speed | 1000-2300r/min | ||
Reduction ratio | 8.94、9.45 | Trans. capacity | 0.196kw/r/min |
Control way | Push-and-pull flexible shaft, electrically, pneumatically | ||
Rated thrust | 70KN | ||
Center distance | 355mm | ||
L×W×H | 772×980×1106mm | ||
Net weight | 1120kg | ||
Flywheel | SAE18、16、14 | ||
Bell housing | SAE0、1 | ||
Application: Marine Gearbox T300/1 is suitable for fishing, tug, and various engineering and transport boats.
